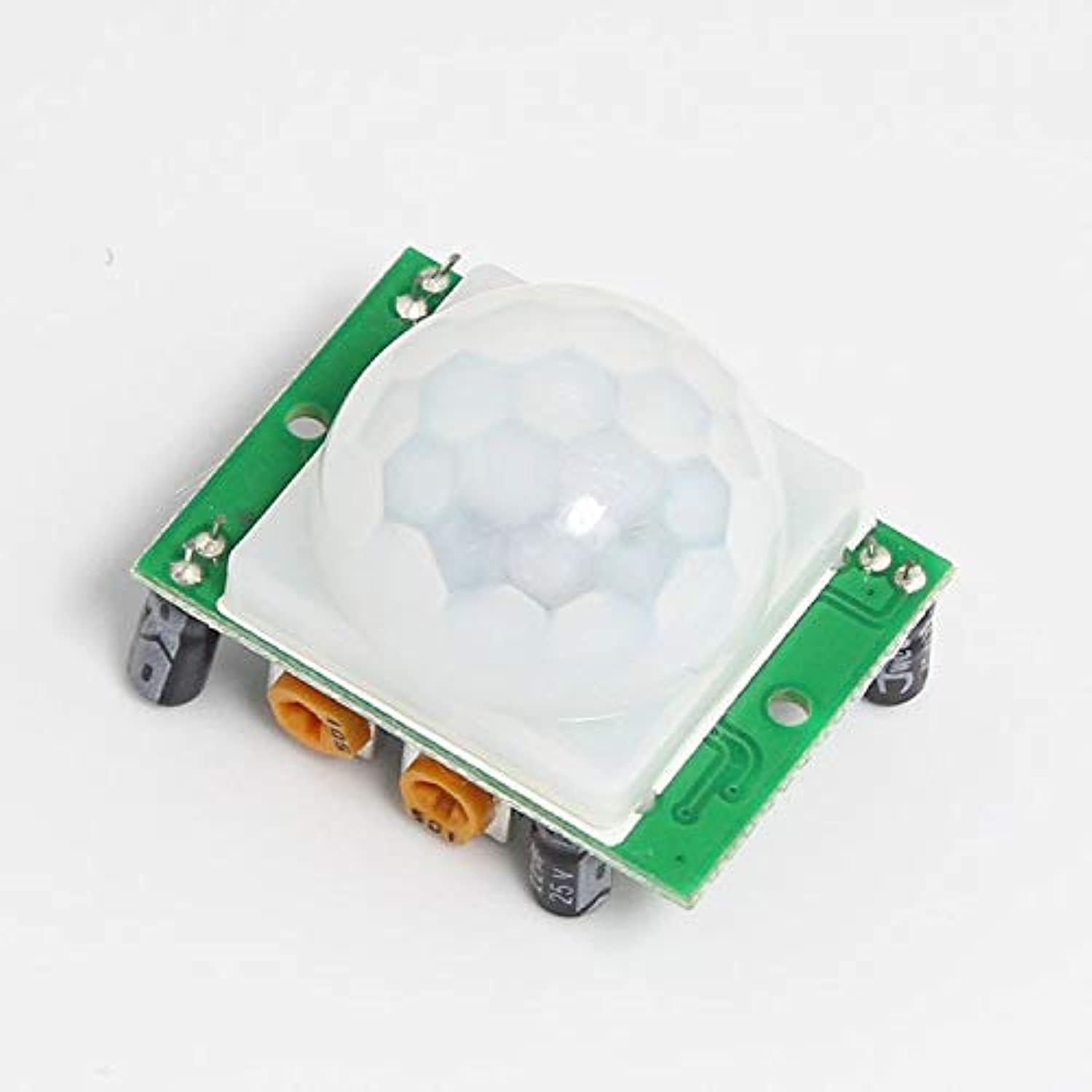

1E40004 HC-SR501 Motion Sensor Detector Module IR Pyroelectric Infrared PIR

The HC-SR501 is a passive infrared (PIR) motion sensor module used to detect human or animal motion in a specified area. It operates at 5V DC and uses an infrared sensor to detect changes in the amount of infrared radiation in the environment. The module has a detection range of up to 7 meters and an adjustable delay time and sensitivity level. It outputs a digital signal that indicates whether motion has been detected or not. The HC-SR501 is commonly used in security systems, lighting control, and home automation applications.

Datasheet

Package Includes:

• 1 x HC-SR501 PIR Sensor

Features:

• Wide operating voltage range from 4.8V to 20V, making it compatible with a variety of power sources.
• Low power consumption in idle mode is only 50uA, which makes it an energy-efficient solution for battery-powered projects. In fully active mode, the power consumption is 65mA.
• High reliability due to the use of the BISS0001 PIR processing chip.
• Adjustable sensitivity or detection distance allows you to customize the module to fit the specific needs of your project.
• Adjustable output time delay lets you control how long the output signal remains high after detecting motion.
• Can be used separately without any additional microcontroller or platform like Arduino or Raspberry Pi, but it can also be interfaced with these platforms to enhance your project.
• The low cost makes it an affordable choice for hobbyists and DIY projects.
• 120-degree detection angle ensures a wide coverage area for detecting motion.
• A detection range of 3 to 7 meters or more makes it suitable for a variety of applications.
• Easy to communicate with any platform like Arduino or Raspberry Pi and all microcontrollers, making it a versatile component for your project.

Description:

The HC-SR501 PIR motion sensor module is a widely used electronic component that can detect human or animal motion within a specified range. The module consists of a pyroelectric infrared sensor, which detects changes in the amount of infrared radiation in the environment caused by the motion of a warm object such as a person or animal. The module operates at 5V DC and is compatible with Arduino and other microcontrollers. The detection range of the HC-SR501 module can be adjusted by rotating the onboard potentiometer. The maximum detection range is up to 7 meters, and the detection angle is 120 degrees.  The HC-SR501 outputs a digital signal that indicates whether motion has been detected or not. The output signal is high (3.3V) when motion is detected, and low (0V) when there is no motion. The module also has an onboard jumper that can be used to set the output signal to either a high or low state. The HC-SR501 motion sensor module is commonly used in security systems, lighting control, and home automation applications. For example, it can be used to turn on a light when someone enters a room, or to trigger an alarm when an intruder is detected. The module can be easily integrated with Arduino and other microcontrollers using digital input/output pins.

Principle of Work:

The HC-SR501 motion sensor module uses passive infrared (PIR) technology to detect movement. The module has a built-in pyroelectric sensor that senses the infrared radiation levels produced by the movement of an object in its field of view. When the module detects motion, it sends a signal to the control circuit that triggers the output pin. The output pin changes from low to high, indicating that motion has been detected. The duration of the high signal is controlled by an onboard potentiometer and can be adjusted to a desired length of time. After the set time period has elapsed, the output pin returns to its initial low state. The module has three pins, including VCC, GND, and OUT. The VCC pin is connected to a power supply within the range of 5-20V, and the GND pin is connected to the ground. The OUT pin is connected to a digital input pin on a microcontroller or other circuit. When motion is detected, the output pin changes from low to high and remains high for a specified duration, as set by the potentiometer. The duration of the high signal can be adjusted as per the user’s requirements.

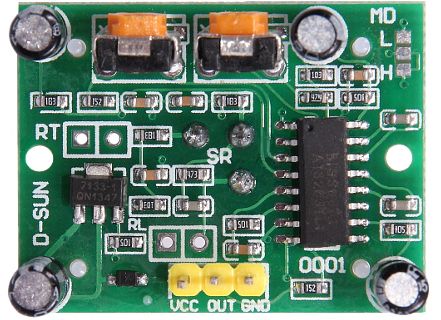

Sensitivity (range) adjustment

The maximum sensing distance (detection range) of the HC-SR501 is 7 meters. The detecting distance may be adjusted by rotating the sensitivity potentiometer CW or CCW. The detecting distance is increased to a maximum of 7 meters by rotating the potentiometer clockwise. Counterclockwise rotation reduces the detecting distance to a minimum of 3 meters.

Time-delay adjustment (Tx)

This potentiometer may control how long the output remains HIGH after motion is detected. The delay is 3 seconds at the most and 300 seconds or 5 minutes at the most. Increase the delay by turning the potentiometer clockwise, and decrease the delay by turning it counterclockwise.

Trigger selection jumper

The yellow jumper allows you to choose between the two trigger modes. It may be changed to L (single trigger) or H (double trigger) (repeating trigger):

• Single trigger – When motion is detected, the output becomes HIGH. It will remain HIGH for the duration specified by the potentiometer. Any movement during this time is ignored and does not reset the timer.
• Repeating trigger – When motion is detected, the delay timer is reset.
